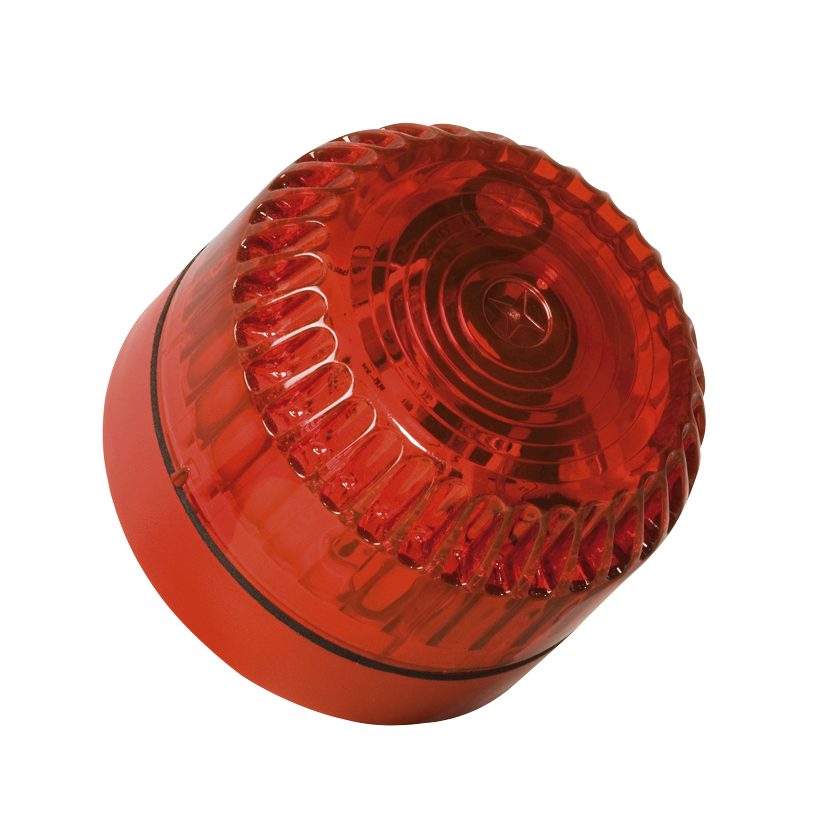

SOLEX
Beacons
Vorteile
- Wide operating voltage
- range up to 60 V DC
- Current surge suppression
- Automatic synchronisation
- High efficiency
- Constant performance
- over voltage range
- Screwable base
- Tamper switch for security
- applications available
- Five different lens colours
Spezifikationen
| Model | SOLEX 3 | SOLEX 10 | SOLEX 15 |
|---|---|---|---|
| Spannungsbereich: | 9 – 60 V DC | 9 – 60 V DC | 9 – 60 V DC |
| Stromaufnahme 24 V: | 40 mA | 88 mA | 240 mA |
| Leistung: | 2.5 Cd | 10 Cd | 15 Cd |
| Blitzrate: | 1 Hz ± 20 % | 1 Hz ± 20 % | 1 Hz ± 20 % |
| Schutzklasse: | IP54 (Shallow Base) / IP65 (Deep Base, U-Base) | IP54 (Shallow Base) / IP65 (Deep Base, U-Base) | IP54 (Shallow Base) / IP65 (Deep Base, U-Base) |
| Temperaturbereich: | -25 °C to +70 °C | -25 °C to +70 °C | -25 °C to +70 °C |
| Linsenfarbe: | red, amber, clear, blue, green | red, amber, clear, blue, green | red, amber, clear, blue, green |
| Material: | Base ABS / Lens PC | Base ABS / Lens PC | Base ABS / Lens PC |
